使用阿里云负载均衡的有福啦！快速掌握ALB Ingress 高级用法

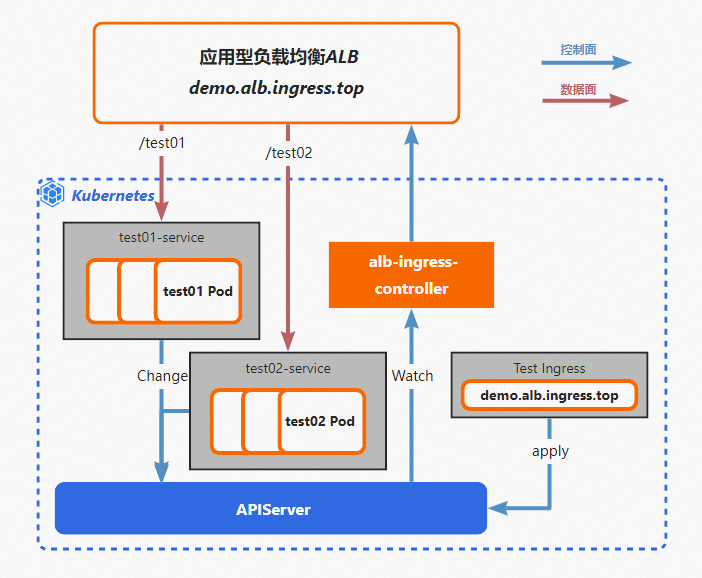

在Kubernetes集群中，ALB Ingress对集群服务（Service）中外部可访问的API对象进行管理，提供七层负载均衡能力。本文介绍如何使用阿里云ALB Ingress将来自不同域名或URL路径的请求转发给不同的后端服务器组、将HTTP访问重定向至HTTPS以及实现灰度发布等功能。

1. 请求方向注解

alb.ingress.kubernetes.io/backend-keepalive: 'true'
  alb.ingress.kubernetes.io/connection-drain-enabled: 'true'
  alb.ingress.kubernetes.io/connection-drain-timeout: '300'
  alb.ingress.kubernetes.io/cors-allow-credentials: 'true'
  alb.ingress.kubernetes.io/cors-allow-headers: >-
    DNT,X-CustomHeader,Keep-Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Authorization,X-Forwarded-For
  alb.ingress.kubernetes.io/cors-allow-methods: 'GET, PUT, POST, OPTIONS'
  alb.ingress.kubernetes.io/cors-allow-origin: '*'
  alb.ingress.kubernetes.io/cors-expose-headers: '*'
  alb.ingress.kubernetes.io/cors-max-age: '172800'
  alb.ingress.kubernetes.io/enable-cors: 'true'
  alb.ingress.kubernetes.io/enable-ipv6: 'true'
  alb.ingress.kubernetes.io/listen-ports: '[{"QUIC": 443},{"HTTPS": 443}]'
  alb.ingress.kubernetes.io/slow-start-duration: '30'
  alb.ingress.kubernetes.io/slow-start-enabled: 'true'

• 连接优雅中断

    alb.ingress.kubernetes.io/connection-drain-enabled: ‘true’

    alb.ingress.kubernetes.io/connection-drain-timeout: ‘300’


• 跨域配置

    alb.ingress.kubernetes.io/cors-allow-credentials: ‘true’


  alb.ingress.kubernetes.io/cors-allow-methods: ‘GET, PUT, POST, DELETE, PATCH, OPTIONS’

    alb.ingress.kubernetes.io/cors-allow-origin: ‘*’

    alb.ingress.kubernetes.io/cors-expose-headers: ‘*’

    alb.ingress.kubernetes.io/cors-max-age: ‘172800’

    alb.ingress.kubernetes.io/enable-cors: ‘true’


• 开启服务组ipv6挂载和HTTP3

    alb.ingress.kubernetes.io/enable-ipv6: ‘true’

    alb.ingress.kubernetes.io/listen-ports: ‘[{“QUIC”: 443},{“HTTPS”: 443}]’


• 后端慢启动

    alb.ingress.kubernetes.io/slow-start-duration: ’30’

    alb.ingress.kubernetes.io/slow-start-enabled: ‘true’


• 会话保持

    alb.ingress.kubernetes.io/sticky-session-type: ‘Insert’

    alb.ingress.kubernetes.io/cookie-timeout: 86400


• 后端长链接

    alb.ingress.kubernetes.io/backend-keepalive: ‘true’


2. 响应方向自定义响应头，需要单独创建一个Ingress 作为响应配置

   1）自定义响应头，以下是常用的浏览器安全头，可直接使用

alb.ingress.kubernetes.io/actions.service-name: |
      alb.ingress.kubernetes.io/actions.website-service: |
      [
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "Access-Control-Allow-Headers",
            "value": "*",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "Access-Control-Allow-Method",
            "value": "POST, OPTIONS, GET",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "X-Frame-Options",
            "value": "ALLOW-FROM https://*.demo.com",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "X-Content-Type-Options",
            "value": "nosniff",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "X-Download-Options",
            "value": "closed",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "X-XSS-Protection",
            "value": "1; mode=block",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "X-Pacific-Timestamp",
            "value": "$time_iso8601",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "Strict-Transport-Security",
            "value": "max-age=31536000; includeSubDomains",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "Content-Security-Policy",
            "value": "frame-ancestors 'self' https://*.demo.com",
            "valueType": "UserDefined"
          }
        },
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
            "key": "Cache-Control",
            "value": "no-cache",
            "valueType": "UserDefined"
          }
        }
      ]
alb.ingress.kubernetes.io/rule-direction.service-name: Response

spec:
  ingressClassName: alb
  rules:
    - host: demo.com
      http:
        paths:
          - backend:
              service:
                name: service-name
                port:
                  name: use-annotation
            path: /
            pathType: Prefix

• alb.ingress.kubernetes.io/actions.service-name

注解中的service-name，需要和spec.rules里面的service-name 名字一样

• 删除spec.rules 里的Port字段，添加 name: use-annotation

3. 请求方向自定义请求头，添加到对应的ALB Ingress 配置里面

alb.ingress.kubernetes.io/actions.demo-service: |
      [
        {
          "type": "InsertHeader",
          "InsertHeaderConfig": {
              "key": "X-Download-Options",
              "value": "closed",
              "valueType": "UserDefined"
          }
        }
      ]

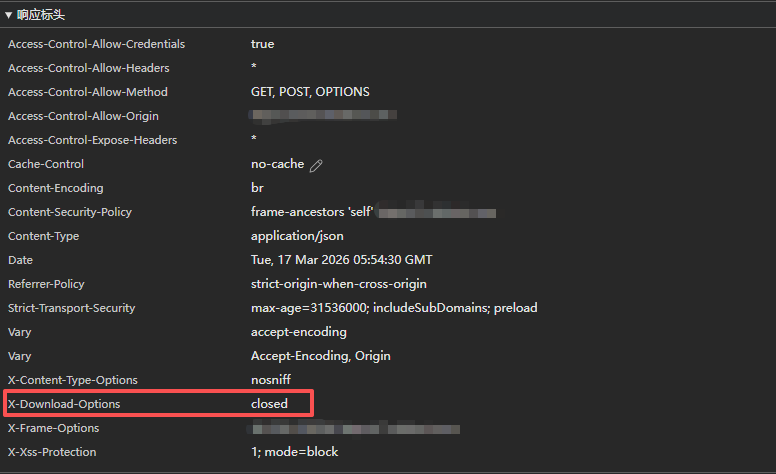

• 接口请求头中会带上自定义的header，通过F12查看
